Oscillating Wiper Motors WWF - 4R
Description
Description
Description

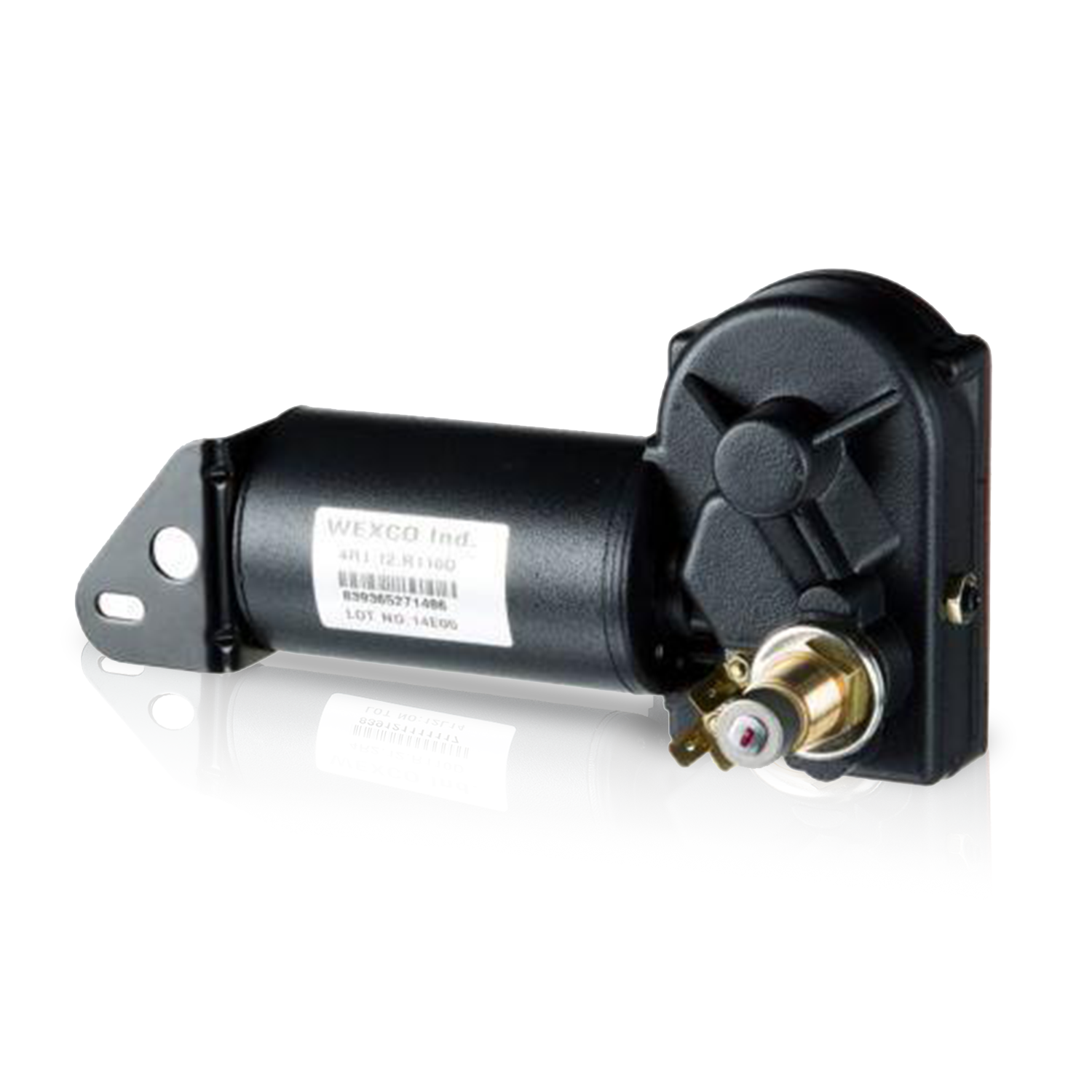

WWF Wiper Motors are common on a variety of trucks, equipment, tractors, boats, and many other applications for nearly 50 years. WWF motors are a self-contained wiper system with an oscillating 1/2ā drum pivot shaft. Wipe angles are easily adjustable as well as an adjustable park position from Right-to-Left.
Default wipe angle for each motor is 110Ā°. The wiper switch can be wired to the cab or installed directly on motor.
| Newton Meters (Torque) | 18 |
| CE Certified | No |
| Speed (RPM) | 40 low/60 high |
Wiper Arms for 4R Motors
| Inch | Part# | Radial/Pantograph |
| 8"-11" | 200722 | Radial |
| 11"-14" | 200714 | Radial |
| 14"-18" | 200717 | Radial |
| 20"-24" | 200718 | Radial |
| 14"-18" | 200715 | Pantograph |
| 20"-24" | 200716 | Pantograph |
Part Numbers
| Autotex Part Number | Voltage | Threaded Shaft Length | Switch Installed |
| 4R1.12.R110D | 12 | 1" | - |
| 4R1.12-19S2.R110D | 12 | 1" | 2 Speed Switch |
| 4R1.24.R110D | 24 | 1" | - |
| 4R1.24-19S2.R110D | 24 | 1" | 2 Speed Switch |
| 4R2.12.R110D | 12 | 2" | - |
| 4R2.12-19S2.R110D | 12 | 2" | 2 Speed Switch |
| 4R2.24.R110D | 24 | 2" | - |
| 4R2.24-19S2.R110D | 24 | 2" | 2 Speed Switch |
| 4R3.12.R110D | 12 | 3" | - |
| 4R3.12-19S2.R110D | 12 | 3" | 2 Speed Switch |
| 4R3.24.R110D | 24 | 3" | - |
| 4R3.24-19S2.R110D | 24 | 3" | 2 Speed Switch |
